Contact our sales team for the latest BDT price, base/rover package options, and delivery timeline.

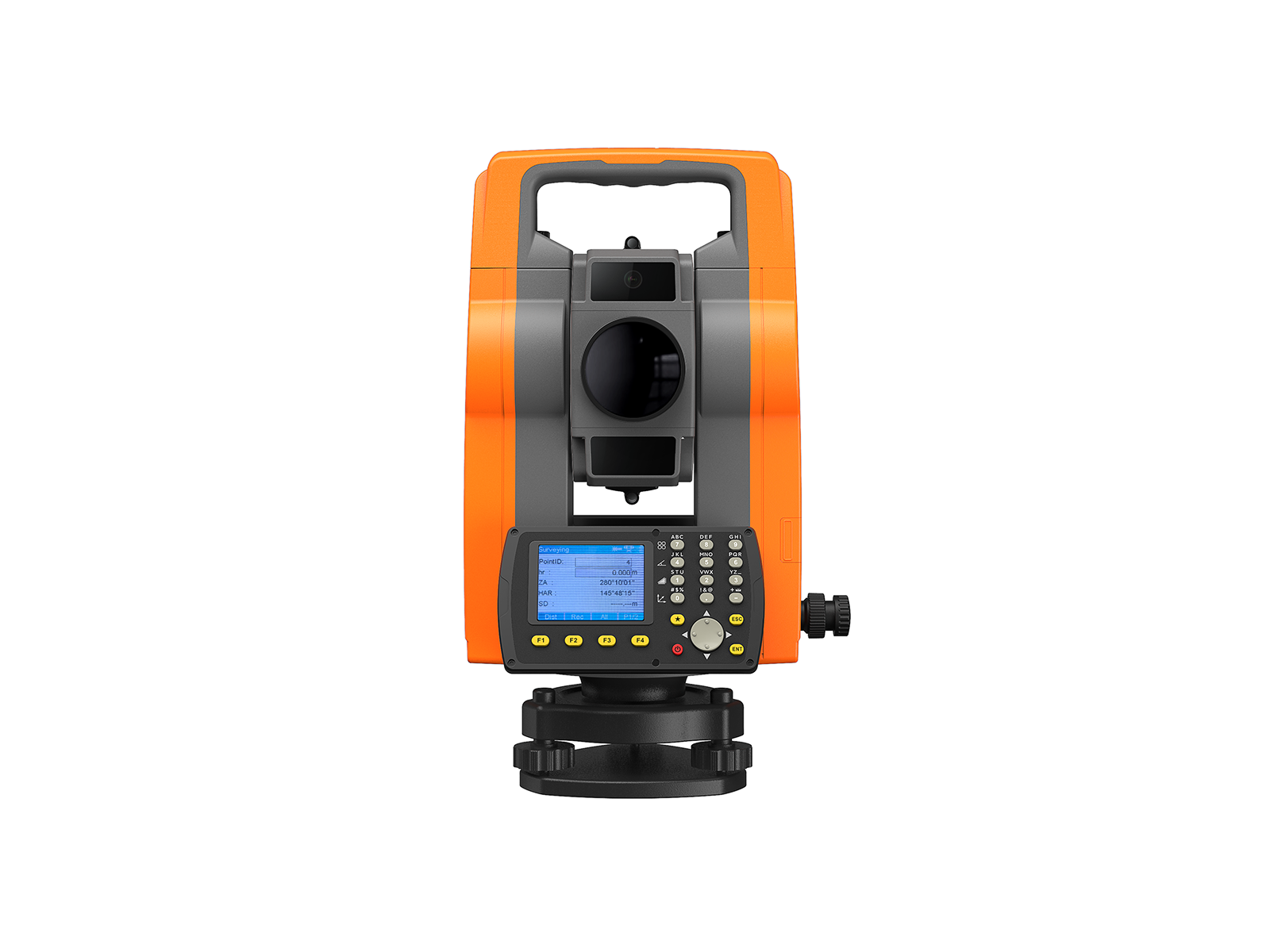

The MTS-102 redefines field operation with an intuitive high-definition color screen. Engineered around absolute encoding,
it delivers unwavering 2″ accuracy. Paired with advanced EDM, it extends your reach to a remarkable 1000m without a prism.
Experience a complete solution built for reliability and performance.
Equipped with five adaptive high-frequency measurement scales and an advanced phase-based laser distance
measurement algorithm, it achieves rapid and accurate distance measurement, meeting the precision require
ments of various advanced engineering applications.
It supports Bluetooth connection with mobile phones, allowing for seamless integration with third-party software such as M-Survey to realize the full functionality of an intelligent total station.
| Accuracy | 2'' |
| Reading System | Absolute, ontinuous four-quadrant |
| Display Resolution | 1″ |
| Magnification | 30x |
| Field Of View | 1°30′ |
| Minimum Focus Distance | 1.7m |
| Resolution | 2.8'' |
| System | Dual axis |
| Working Range | ±4′ |
| Resolution | 1'' |
| Single Prism Mode | 4000m |
| Reflector | 2000m |
| Non-Prism Mode | 1000m |
| Prism Precision Mode | ±(2mm+2×10-6×D) |
| Reflector Mode | ±(3mm+2×10-6×D) |
| Non-Prism Mode | ±(3mm+2×10-6×D) |
| Non-Prism | Fine: 0.7s Rapid: 0.5s Tracking: 0.3s |
| Standard Prism Mode (Tracking/Precise) | 0.1 / 0.3 sec |
| Precision | 1.5mm / instrument height 1.5m |
| Wavelength | 635nm |
| Security classification | Class2 |
| Output Power | 0.7-1.0nw |
| Tube Level | 30″ / 2 mm |
| Circular Level | 8′ / 2 mm |
| Dimensions and Weight | 217 x 198 x378 mm, 5.7kg |
| Display Screen | 2.8 inch color screen |
| Keyboard | twenty-four |
| Interface | 1* USB |
| Wireless | Bluetooth 5.0 |
| Battery Voltage/Capacity/Type | Li-ion rechargeable battery, 7.2V, 7000mAh |
| Angle Measurement | 38h |
| Angle Measurement + Distance Measurement | 27h |
| Operating Temperature | -20℃ ~ +55℃ |
| Storage Temperature | -30℃ ~ +55℃ |
| Waterproof/Dustproof | IP54 |
* Specifications may vary by configuration. Please confirm with our team before ordering.
Contact our technical survey engineers in Dhaka. We provide full warranty, local spare parts, and training for all equipment.
