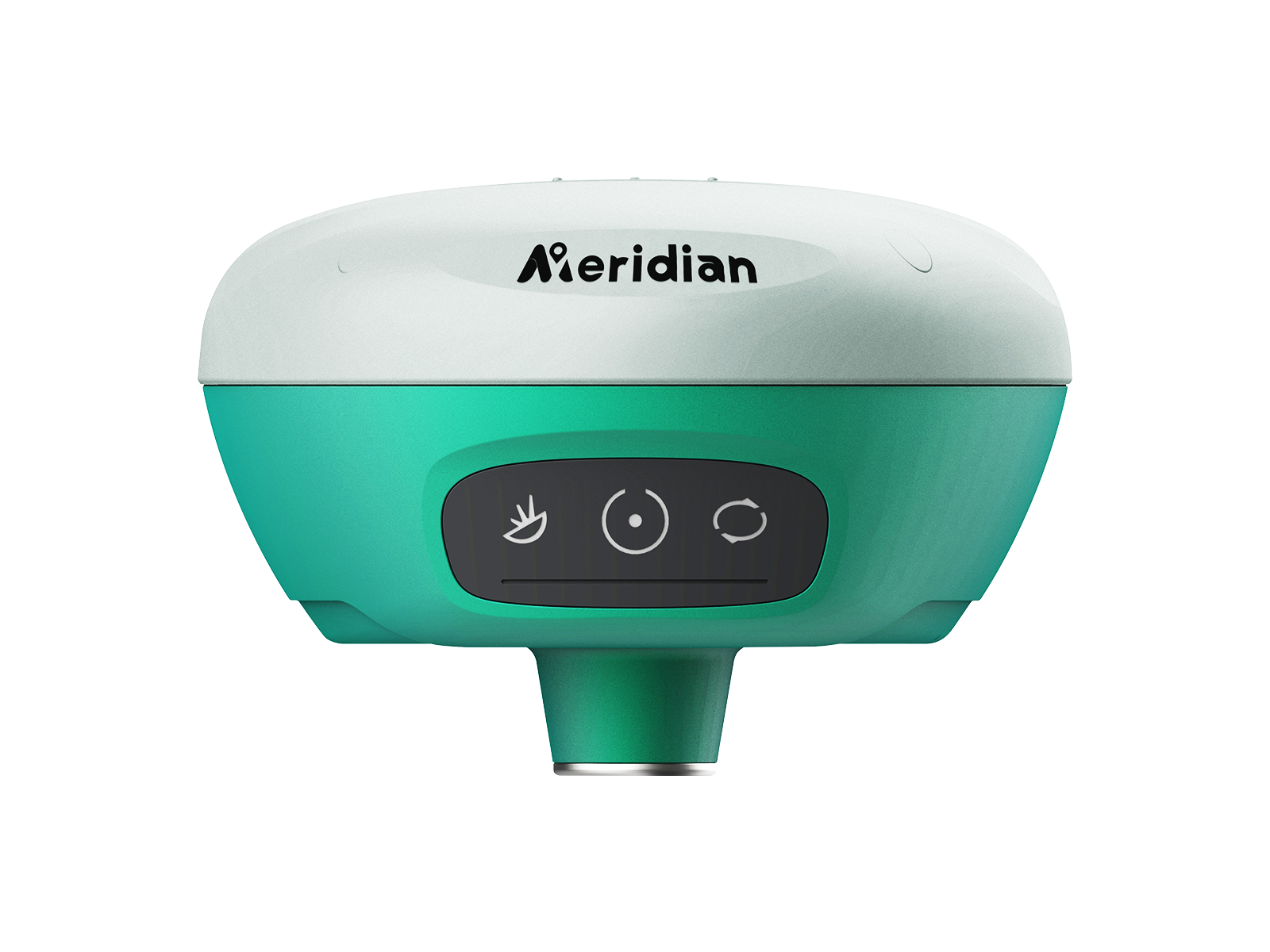

M6Plus GNSS receiver is an extremely lightweight, full-featured, inteligent GNSS receiver system equipped with an integrated full-frequency antenna and advanced multi-channel RTK engine, built-in radio, and 32GB internal storage, allowing users to attain accurate, reliable solutions.
Its powerful RTK algorithm makes M6Plus easy to get fixed solutions in the most demanding environments, brings you to focus on your surroundings and not the bubble to measure the points that previously could not be measured, making your stake out more efficiently and conveniently than ever before with increased speed, safety and comfort and greatly improving your working efficiency.
M6Plus provides an excellent onboard real-time navigation solution with high accuracy. Multi-satellite signals (GPS,GLONASS, BEIDOU, GALILEO, QZSS,IRNSS, L-Band) are included.
Equipped with 120 ° calibration-free IMU technology in a small body, extending the M6Plus's application range to locations that traditional RTK systems cannotreach, opening up new horizons for prod-uct applications.
Equipped with 4G module, M6Plus offer a longer baseline working possibility.
The palm-sized RTK (Real-Time Kine-matic) system combines elegance with precision, offering a compact solution for accurate positioning on-the-go.
With 7.2V 7000mAh and the quick-charge capability, supports you in working more than 26hours and greatly saves your time.
| Channel | 1408 |
| BDS | B1I，B2I，B3I，B1C，B2a，B2b* |
| GPS | L1 C/A，L1C，L2P(Y)，L2C，L5 |
| GLONASS | L1，L2，L3* |
| GALILEO | E1，E5a，E5b，E6* |
| QZSS | L1C/A, L1C, L2C, L5, L6* |
| SBAS | L1, L5* |
| NavIC(IRNSS)* | L5 |
| L-band | B2b PPP (Only for the Asian-Pacific Region)& HAS* |
| Data Format | CMR, CMR+, RTCM2.X, RTCM3.X |
| Data Output | NMEA-0183, RINEX, TXT |
| Data Updating Rate | Up to 20Hz |
| Time to Recapture | <1s |
| Cold Start | <40s |
| Single Point Positioning (RMS) | Horizontal: 1.5m | Vertical: 3.0m |
| DGPS (RMS) | Horizontal: 0.4m | Vertical: 0.8m |
| Real-Time Kinematic (RMS) | Horizontal: ±(8mm+1ppm) |
| Speed Accuracy (RMS) | 0.03m/s |
| Static Accuracy (RMS) | Horizontal: ± (2.5mm+0.5-6·D) |
| Time Accuracy (RMS) | 20ns |
| Speed Accuracy | ≥0.03m/s |
| Tilt Compensation Accuracy | ≤2cm(Tilt Angle≤60°, Up to 120°) |
| IMU Update Frequency | 200Hz |
| Bluetooth | SPP3.0+BLE5.0 Dual Mode, 2.4GHz@ +6 dBm |
| WiFi | 802.11 a/b/g/n | 5.0GHz |
| Cellular | LTE TDD: B34/38/39/40/41 |
| Storage | 32GB |
| Internal Radio | Transmitting power: 2W(33+1dBm) 1W(30+1dBm) |
| Specifications | 7.2V，7000mAh lithium-ion Rechargeable Battery |
| Operating Times | RTK Rover: Up to 28 hours (Typical Power Consumption) |
| Charging | Support USB PD 15V/2A (Supports Quick Charging Adapter) |
| Operating Temperature | -40°C~+85°C |
| Storage Temperature | -55°C~+85°C |
| Anti-seismic | 2m Pole Drop Onto Concrete |
| Dust & waterproof | IP68 |
| I/O Interface | 1× USB type-C port; 1 × TNC antenna port; 1× SIM card slot; 1 × 5 pin LEMO port |
| Dimensions | 125mm×125mm×79mm |
| Weight | ≤699g |
* Specifications may vary by configuration. Please confirm with our team before ordering.
