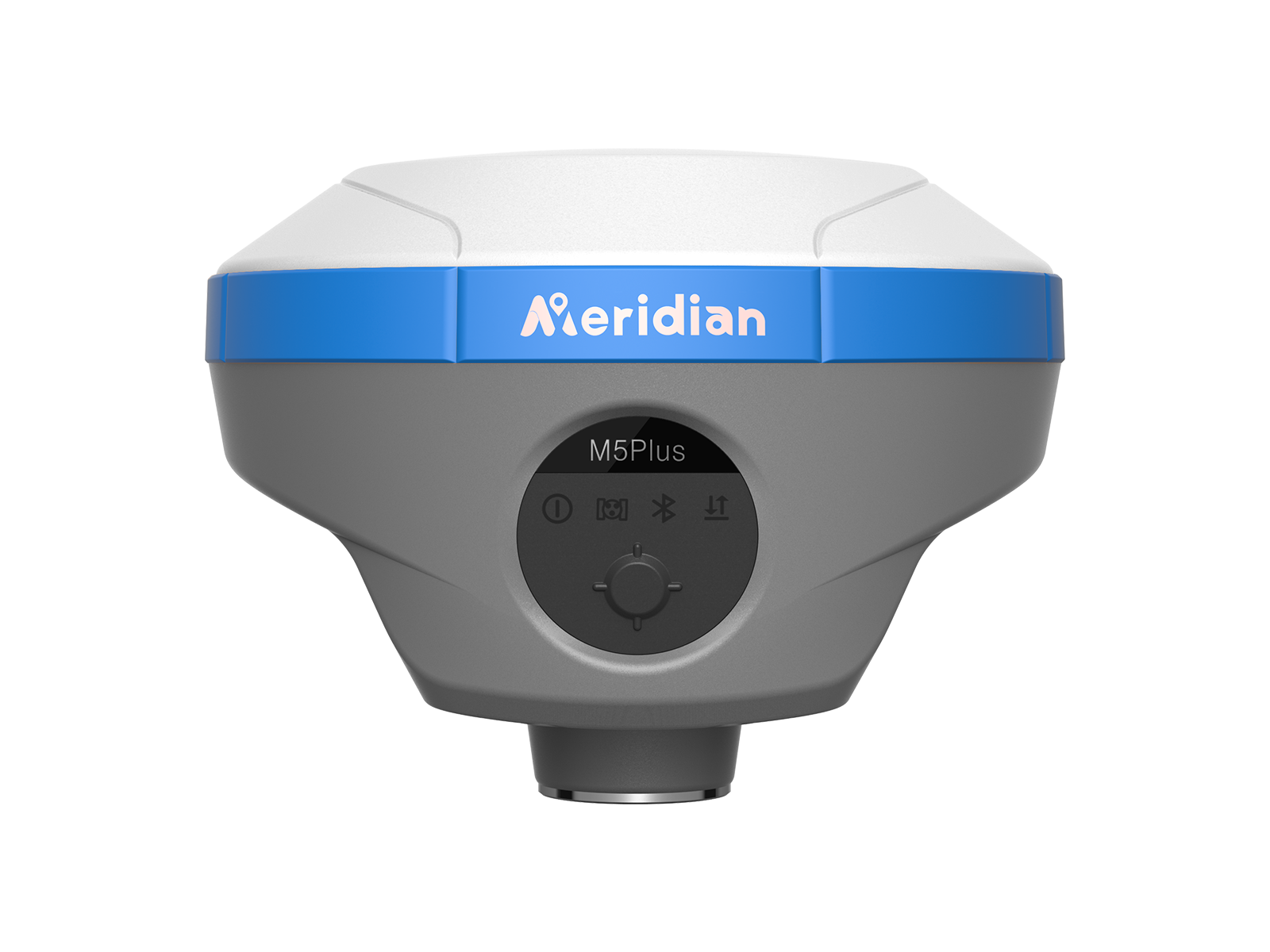

M5Plus GNSS receiver is an extremely lightweight, full-featured, intelligent GNSS receiver system equipped with an integrated full-frequency antenna and advanced multi-channel RTK engine, built-in radio, and 8GB internal storage, allowing users to attain accurate, reliable solutions.
Its powerful RTK algorithm makes M5Plus easy to get fixed solutions in the most demanding environments, brings you to focus on your surroundings and not the bubble to measure the points that previously could not be measured, making your stake out more efficiently and conveniently than ever before with increased speed, safety and comfort and greatly improving your working efficiency.
M5Plus provides an excellent onboard real-time navigation solution with high accuracy. Multi-satellite signals (GPS, GLONASS, BEIDOU, GALILEO, QZSS, IRNSS, L-Band) are included.
Equipped with 120° calibration-free IMU technology in a small body, extending the M5Plus's application range to locations that traditional RTK systems cannot reach, opening up new horizons for product applications.
The palm-sized RTK (Real-Time Kinematic) system combines elegance with precision, offering a compact solution for accurate positioning on the go.
With 7.2V 6600mah and quick-charge capability, it supports you in working more than 26 hours and greatly saves your time.
IP68 waterproof and dustproof design and magnesium-aluminum alloy housing.
| Channel | 1408 |
| Beidou (BDS) | B1I，B2I，B3I，B1C，B2a，B2b* |
| GPS | L1 C/A，L1C*，L2P(Y)，L2C，L5 |
| GLONASS | L1，L2，L3* |
| GALILEO | E1，E5a，E5b，E6* |
| QZSS | L1C/A，L1C， L2C，L5，L6* |
| SBAS | L1，L5* |
| NavIC(IRNSS)* | L5 |
| L-band | B2b PPP (Only for the Asian-Pacific Region)&HAS* |
| Data Format | CMR, CMR+, RTCM2.X, RTCM3.X |
| Data Output | NMEA-0183, RINEX, TXT |
| Data Updating Rate | Up to 20Hz |
| Time to Recapture | <1s |
| Cold Start | <40s |
| Single Point Positioning (RMS) | Horizontal: 1.5mm | Vertical: 3.0mm |
| DGPS (RMS) | Horizontal: 0.4m | Vertical: 0.8m |
| Real-Time Kinematic (RMS) | Horizontal:±(8mm+1ppm) |
| Speed Accuracy(RMS) | 0.03m/s |
| Static Accuracy (RMS) | Horizontal:±(2.5mm+0.5ppm) |
| Time Accuracy (RMS) | 20ns |
| Speed Accuracy | ≥0.03m/s |
| Tilt Compensation Accuracy | ≤2cm(Tilt Angle≤60°, Up to 120°) |
| IMU Update Frequency | 200Hz |
| Bluetooth | V5.2 Dual Mode. 2.4GHz@+5dBm |
| Storage (USB Access Supported) | 8GB |
| Internal Radio | Transmitting power: 1 W (27 dBm +1.5 dB) or 2 W (32 dBm +1.5 dB) |
| Specifications | 7.2V 6600mAh lithium-ion Rechargeable Battery |
| Operating Time | RTK Rover: Up to 26 hours (Typical Power Consumption) |
| Charging | Support USB PD 15V/1,5A (Supports Quick Charging Adapter) |
| Operating Temperature | -40°C~+85°C |
| Storage Temperature | -55°C~+85°C |
| Anti-seismic | 2m Pole Drop Onto Concrete |
| Dust & Waterproof | IP68 |
| I/O Interface | 1× USB type-C port; 1 × SMA antenna port; 1 × 5 pin LEMO port |
| Dimensions | 119mm×119mm×76mm |
| Weight | 599g |
| Material | Magnesium-alloy Casing + ABS/PC Plastic Top Cover |
* Specifications may vary by configuration. Please confirm with our team before ordering.
