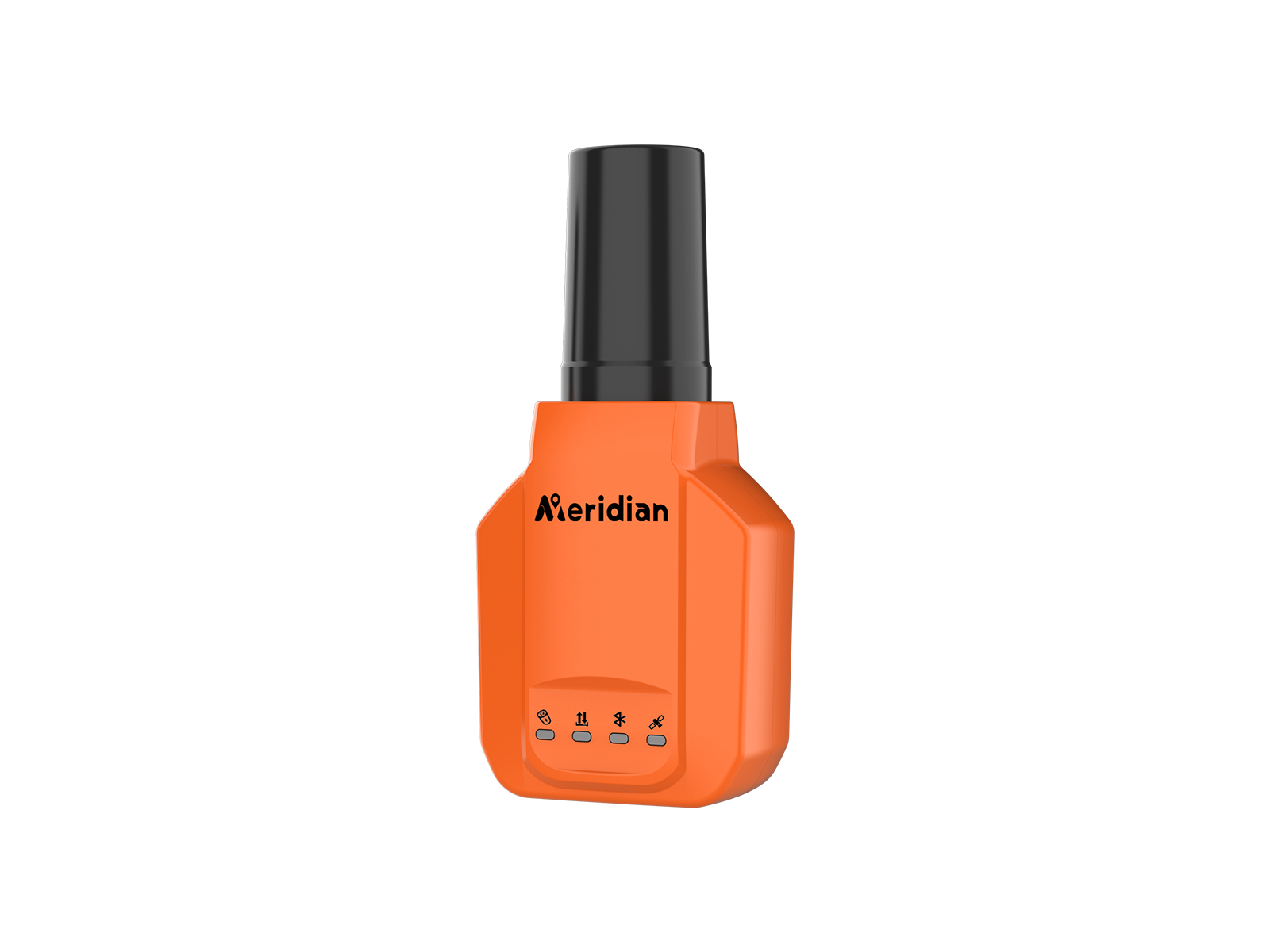

The Meridian M3 is a user-friendly and portable smart antennawith lMU that offers high-quality positioning data, greatly mproves your working efficiency. Supports multiple constellation and frequency tracking, calibra-tion-free tilt compensation lMU technology, it is designed to be worn and used on-the-go, and it can provide professional-grade results. Equipped with a high precise GNSS module, the M3 is capable of achieving centimeter-level positioning accuracy using CORS differential data.
The Meridian M3 is a versatile device that supports various satellite constellations including BDS, GPS，GLONASS, Galileo, QZSS, and SBAS. With its 1408 channels and full support for BDS-3, it offers comprehensive GNSS signal tracking capabilities.
Equipped with calibration-free lMU technology insmall body, brings you to focus on your surroundingsand not the bubble to measure the points that previ-ously could not be measured, making your stake out more efficiently and conveniently than ever before with increased speed, safety and comfort and greatlyimproving your working efficiency.
The M3 is suitable for a range of survey and layout tasks,such as road construction, power line surveying, site lev-eling control, and CAD applications.
Embedded with a high precision GNSS module, the M3 supports centimeter-level CORS differential data posi-tioning.
| Channel | 1408 |
| BDS | B1I，B2I，B3I，B1C，B2a，B2b* |
| GPS | L1 C/A，L1C*，L2P(Y)，L2C，L5 |
| GLONASS | L1，L2，L3* |
| GALILEO | E1，E5a，E5b，E6* |
| QZSS | L1C/A, L1C, L2C, L5, L6* |
| SBAS | L1, L5* |
| NavIC(IRNSS)* | L5 |
| L-band | B2b PPP (Only for the Asian-Pacific Region)& HAS* |
| Data Format | CMR, CMR+, RTCM2.X, RTCM3.X |
| Data Updating Rate | Up to 20Hz |
| Initialization Time | ≤5 Seconds (Typical) |
| Cold Start | ≤30 Seconds |
| Hot Start | ≤3 Seconds |
| Single Point Positioning (RMS) | Horizontal: 1.5m | Vertical: 3.0m |
| DGPS (RMS) | Horizontal: 0.4m | Vertical: 0.8m |
| Real-Time Kinematic (RMS) | Horizontal: ±(8mm+1×1ppm) |
| Speed Accuracy (RMS) | 0.03m/s |
| Tilt Compensation Accuracy (Up to 120°) | ≤1.5cm(Tilt Angle≤30°) |
| Bluetooth | BluetoothV4.0 |
| Indicator | Power Indicator x1 |
| Specifications | 8.4V/1800 mAh lithium-ion Rechargeable Battery |
| Operating Times | RTK Rover: Up to 10 hours (Typical Power Consumption) |
| Operating Temperature | -20°C~+75°C |
| Storage Temperature | -40°C~+85°C |
| Anti-seismic | 1.6m Pole Drop Onto Concrete |
| Dust & Waterproof | IP67 |
| Humidity | 95% No Condensation |
| I/O Interface | Type-C& Power Button |
| Dimensions | 108 mm x 52 mm x 36 mm |
| Weight | ≤170g |
* Specifications may vary by configuration. Please confirm with our team before ordering.
