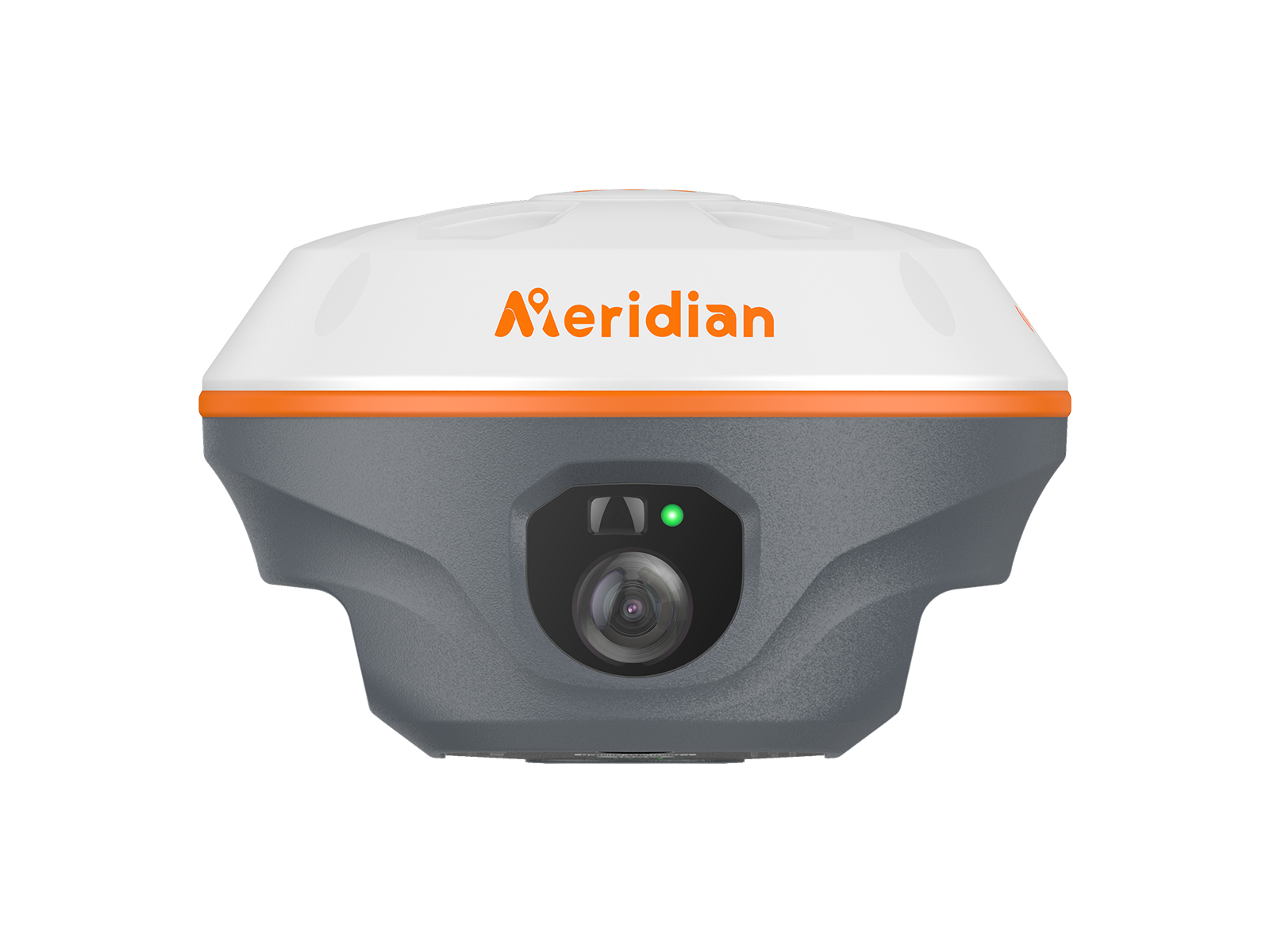

The Meridian M27LV seamlessly combines high-precision laser measurement with an integrated high resolution camera, enabling a powerful Laser-Visual Fusion workflow. In complex field condi tions-such as bright sunlight, reflective surfaces, or long-distance targets-the camera functions as the system’s eye, delivering real-time
visual feedback for accurate and confident targeting.
L Laser technology offers unparalleled advantages in precision positioning and makes surveying work rodless and Easier. Combining cutting-edge laser technology with full constellation GNSS, IMU, and 4G integration, delivers calibration-free accuracy, significantly enhancing work efficiency and reducing potential risks.
Visual positioning eases point finding by overlaying design files onto real scenes, enhancing stakeout efficiency,A high-performance HD camera achieves high accuracy with precise signal tracking. The 360-de-gree AR stakeout seamlessly switches between the handheld controller and rover, ensuring fast and accu-rate stakeout experiences
Equipped with laser & 120° calibration-free IMU techno lo-gy in a small body, it complements the laser's outstanding performance, extending the M27LV applica
tion range to locations that traditional RTK systems cannot reach, open-ing up new horizons for product applications, enhancing customer satisfaction and
boosting operational efficiency
Equipped the MeridianLink protocol internal radio offers 15km working range and increases flexibility. By eliminat
ing the need for an external radio, the M27LV becomes more lightweight, less complex, and more portable, which can lead to increased efficiency and convenience in the field
| Channel | 1760 |
| BDS | B1I，B2I，B3I，B1C，B2a，B2b* |
| GPS | L1 C/A，L1C，L2P(Y)，L2C，L5 |
| GLONASS | L1，L2，L3* |
| GALILEO | E1，E5a，E5b，E6* |
| QZSS | L1C/A, L1C, L2C, L5, L6* |
| SBAS | L1, L5* |
| NavIC(IRNSS)* | L5 |
| L-band | B2b PPP (Only for the Asian-Pacific Region)& HAS* |
| Data Format | CMR, CMR+, RTCM2.X, RTCM3.X |
| Data Output | NMEA-0183, RINEX, TXT |
| Data Updating Rate | Up to 20Hz |
| Time to Recapture | <1s |
| Cold Start | <40s |
| Single Point Positioning (RMS) | Horizontal: 1.5m | Vertical: 3.0m |
| DGPS (RMS) | Horizontal: 0.4m | Vertical: 0.8m |
| Real-Time Kinematic (RMS) | Horizontal: ±(8mm+1ppm) |
| Speed Accuracy (RMS) | 0.03m/s |
| Static Accuracy (RMS) | Horizontal: ± (2.5mm+0.5ppm) |
| Time Accuracy (RMS) | 20ns |
| Speed Accuracy | ≥0.03m/s |
| Tilt Compensation Accuracy | ≤2cm(Tilt Angle≤60°, Up to 120°) |
| IMU Update Frequency | 200Hz |
| Laser Accuracy (RMS) | Horizontal: ±(8mm+3mm/m) |
| Bluetooth | SPP3 0+BLE5 0 Dual Mode |
| WiFi | 802.11 a/b/g/n/ac |
| Cellular | LTETDD:B38/39/40/41 |
| Storage | 32GB |
| Internal Radio | Transmitting Power: 2W(33±1dBm) 1W(30±1dBm) |
| Specifications | 7.2V,6600mAh lithium-ion Rechargeable Battery |
| Operating Times | Laser RTK Rover: Up to 22 hours (Typical Power Consumption) |
| Charging | Support USB PD 15V/2A (Supports Quick Charging Adapter) |
| Operating Temperature | -40°C~+85°C |
| Storage Temperature | -55°C~+85°C |
| Anti-seismic | 2m Pole Drop Onto Concrete |
| Dust & waterproof | IP68 |
| AR Camera | 5 MegaPixel, large viewing angle, supports live view stakeout |
| Laser Assisted Camera | 5 MegaPixel ,supports Photogrammetry |
| I/O Interface | 1× USB type-C port; 1 × TNC antenna port; 1× SIM card slot; 1 × 5 pin LEMO port |
| Dimensions | 125mm×125mm×79mm |
| Weight | ≤749g |
* Specifications may vary by configuration. Please confirm with our team before ordering.
